UV FB6090 NANODIY UV FB6090

NANODIY UV FB6090

The NANODIY UV FB6090 is a professional 60x90cm UV flatbed printer designed for manufacturers, print shops and promotional businesses that demand speed, precision and flexibility. Print directly onto wood, acrylic, glass, metal, leather, ceramics, plastics and hundreds of other rigid materials, up to 18cm height, using vibrant UV inks with exceptional durability. Powered by Epson printheads and NANODIY RIP software for reliable, high-volume production. CCD version comes with camera assistance that scans your worktable for easier application of printing.
Whether you're producing promotional products, personalised gifts, industrial labels or premium signage, the UV FB6090 delivers production-grade quality with exceptional versatility.
Request a QuoteDownload Brochure
Expert Support
Installation & training
Warranty
12 months standard
Global Shipping
Fast & secure delivery
RIP Optimized
Works perfectly with Nanodiy RIP

Nanodiy UV FB6090 i1600

Print larger products or multiple smaller items in one production cycle to maximise efficiency and reduce turnaround times. Colour, white ink and varnish in a single pass for premium finishes, textured effects and outstanding opacity on dark or transparent materials.

High-performance Epson printheads deliver sharp text, vibrant colours and smooth gradients suitable for both fine detail and production work. The integrated vacuum table securely holds materials during printing, improving registration accuracy and ensuring consistent print quality. Automatic white ink circulation helps prevent pigment settling and keeps white ink ready for reliable daily production. Print on Objects up to 18cm high and expand into bottle, tumbler and cylindrical product decoration with optional rotary printing attachments.

Classic

Whether you're launching a new product line or expanding your production capabilities, the NANODIY UV FB6090 delivers the speed, precision and versatility to help your business grow.

CCD

The integrated CCD camera automatically detects the position, angle and orientation of printed objects, allowing the printer to accurately align artwork without manual positioning. This significantly reduces setup time while improving production speed and consistency, especially when printing multiple small products.

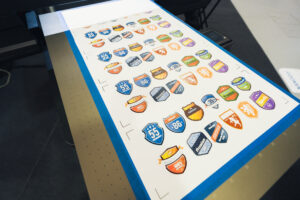

TPU

New on the market, 3D TPU amblems are perfectly made with flexibile sillicone inks for sportswear.

Technical specifications

Printhead
Epson i1600
Number of printheads
3
Print resolution
720x2400
Workstation size
60x90cm
Printing speed
2-6 m2/h
RIP software
Nanodiy RIP (by DevStudio)
Power supply
220V

Available ink configurations

Classic & CCD

Production speed varies in number of passes how much ink and varnish is going to be used.

3
Cyan
Magenta
Yellow
Black
White
Varnish

TPU

3D effect amblems that will make every football team want one. Made with sillicone inks that will give you flexibiltiy like no other UV ink.

3
Cyan
Magenta
Yellow
Black
White
Varnish
Ink Level Sensor
Included
White Ink Mixer
Included
Vacuum Workstation
Included
Laminating
Extended
Max. print height
18cm
Cylindric extension
Included
Roll-to-Roll
Included
CCD
Optional
TPU
Optional

Round objects

Bottles, tumblers, mugs, metal products

Flat objects

Plastic, metal, wood, ceramic, gift boxes, steel

Textille

Cotton, poliester, bags
Nanodiy UV FB6090 Printer
1
Nanodiy RIP software
1
Cylindric extension
1
Roll-to-roll extension
1
Classic UVFB package: 2x CMYK+W+V set 500ml hard UV ink
1
TPU UVFB package: 1x CMYK+W+V set 1L sillicone UV ink
1
